RK0991(LED)

RK0991(LED)

Additional files

RK0991-LED.pdf

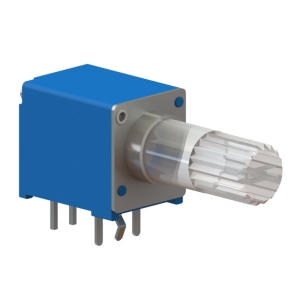

Product Name : RK0991(LED)
Product Description

Features:
Compact design, only 9.5 mm wide
Insert molding with resin around the resistor prevents flux build-up
Available LED colors: red, green, blue, white

Application:
Audio equipment, speakers
Home appliances
Automotive electronics

Inquiry
Product Introduction
1Total Resistance/ Tolerance1KΩ~1MΩ ; ±20% (More than 1MΩ±30%)
2 Rotational Angle 300°±5°
3 Resistance Taper A.B.C.
4 Rotational Life 10,000 cycles
5 MOQ 1,000pcs
How to order :
RK099
 1 - B 10K L-15 LED / RED
↓ ↓ ↓ ↓ ↓ ↓ ↓
Model No Single unit Taper Resistance Shaft length Shaft type LED color
